Home » All EGT Sensors » Aircraft » Small Aircraft Engines

CHT Digital PMD1XT Pyrometer Gauge + CHT Cylinder Head Temperature Sensor Kit WS

CHT Digital Pyrometer Gauge + CHT-WS Cylinder Head Temperature Sensor Kit

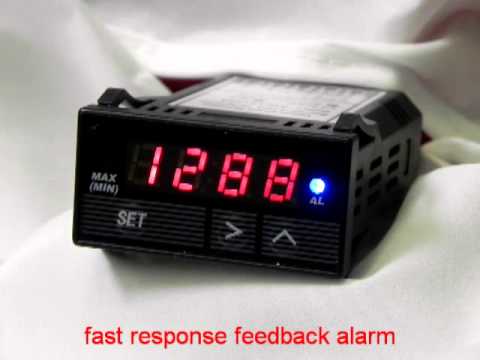

CHT Cylinder Head Temperature Sensor with Spark PlugSuperLite Mini Digital LED Pyrometer Thermocouple Gauge Display Red Blue GreenSmall & Lightweight Mini Digital LED Pyrometer Thermocouple Gauge DisplayPMD1XT-RD-012-0000-PH-X  Digital LED Pyrometer Display Back
Sale Price:
$89.75
SKU: KIT-PMD1XT-CHT-WS-XXX
Availability: Stock
Quantity:

Options

Product Info:

  • Summary
  • Technical
  • Video

Kit Includes:
• CHT WS Series Cylinder Head Temperature Sensor - 10, 12, or 14 mm ID
• Digital Pyrometer Gauge


CHT Sensor
• 10 mm, 12 mm, or 14 mm ID
• -40 °F to 500 °F measuring range (-40 °C to 260 °C)
• Response time constant: 1500 milliseconds
• Cable is 6 feet long (2 meters) or 12 feet long (4 meters)
• Made in the USA

Digital Pyrometer
• Small Size ~ 1" high x 2" wide x 3" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• °F/°C selectable


PMD1XT series Digital Pyrometer Gauge Technical Specifications:
• Input: K type thermocouple (default)
• Other Input Types: J & T type thermocouple, RTD, Voltage, mA (user selectable)
• Display Range: -325 to 2372°F (-200 to 1300°C); (default setting of K type thermocouple)
• Accuracy: +/-0.2% of reading (+/- 1°C)
• Display Resolution: 1°F (1°C)
• LED Display: Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate
• Microprocessor Sampling Rate: 4 samples/second
• Microprocessor A/D Resolution: 16 bit
• A/D Accuracy: +/- 0.2% FS +/- 1 unit
• Environment: 0 to 50°C, 85% Max. RH (non-condensing)
• Operating Temperature: +32 to +125°F (0 to +50°C)
• Front Bezel Rating: IP51
• Power 12 VDC Version: +10 to +16 VDC
• Power 24 VDC Version: +16 to +30 VDC
• Current Draw: < 100 mA @ 24 VDC
• Analog Retransmission Output: 0-5VDC or 1-5VDC (user selectable) (on "-A" series only)
• Alarm Relay Contact Rating: 1A @ 30VDC
• Case Dimensions: 1" x 2" x 3" (24mm x 48mm x 75mm)
• Panel Cutout Dimensions: 1.77" x 0.87" (45 x 22 mm)(1/32 DIN)
• Weight: 2.1 ounces
CHT-WS-KK series CHT Sensor Specifications:
• Type K thermocouple
• Special Limits of Error (+/- 0.4% of reading)
• -40 °F to 500 °F measuring range (-40 °C to 260 °C)
• Stainless steel over-braid cable with FEP insulated conductors, 6 feet or 12 feet
• Response time constant (1500 milliseconds)
• Bendable ring terminal

Shipping Notes

Ships from stock
We Ship World Wide! North America, South America, Europe, Asia, Australia - Just about wherever you are, we'll ship to you.


Questions about what you need? Call us 248-636-1515 for technical support.


CHT-WS Cylinder Head Temperature Sensor Type K Data Sheet
CHT-WS Cylinder Head Temperature Sensor Installation Guide
PMD-1XT 12VDC Series Pyrometer Gauge User Manual
PMD-1XT Series Pyrometer Gauge Quick Start Guide
PMD-1XT 24VDC Series Pyrometer Gauge User Manual

Brand Name: The Sensor Connection
Made in: USA

Description of CHT Sensors (included):
Item# CHT-WS-072-0010-KK-N CHT Sensor with 10 mm ID, 6 foot cable
or
Item# CHT-WS-072-0012-KK-N CHT Sensor with 12 mm ID, 6 foot cable
or
Item# CHT-WS-072-0014-KK-N CHT Sensor with 14mm ID, 6 foot cable
or
Item# CHT-WS-144-0014-KK-N CHT Sensor with 14 mm ID, 12 foot cable

Choice of "SuperLite" Mini Meter (included):
Item# PMD1XT-RD-012-0 SuperLite Mini Meter Amplifier with Peak Hold, 12 VDC powered, Red LEDs
or
Item# PMD1XT-RD-012-A SuperLite Mini Meter Amplifier with Peak Hold, 12 VDC powered, Red LEDs, Analog Output

Add Meter Protective Box Enclosure (optional):
None
or
Item# PMD-ENC-BLK Protective Box Enclosure for "SuperLite" Meter

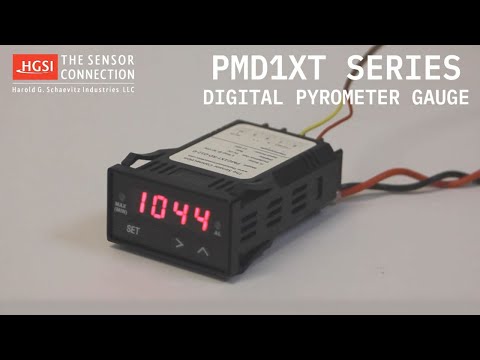

Overview of PMD Series Digital Pyrometer Gauge
Overview of PMD Series Pyrometer
