OVERVIEW
For Marine Applications!
Kit Includes:
• EGT Probe
• Marine Duty Digital Pyrometer Gauge
• Audible High Temperature Alarm
• Adjustable Compression Fitting
• Stainless steel weld bung
• 10, 30, 50, 70, or 100 feet of Extension Cable + Connectors
(Recommended for fuel types: Diesel & Biodiesel)
EGT Probe
• Probe diameter 3/16 inch (0.187 inch) (4.75 mm)
• Inconel 600 sheath
• Includes 316 SS adjustable compression fitting
• Cable is 6 feet long (2 meters)
• Made in the USA
Digital Pyrometer
• Small Size ~ 1.5" high x 3.0" wide x 1.75" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• °F/°C selectable
• Front Bezel Rating: NEMA4X/IP65
• Power: 9 to 28 VDC
• Made in the USA
Also Includes:
• Audible Buzzer Alarm
• Stainless Steel Weld Bung Adapter
• 10, 20, 50, 70, or 100 feet of FEP insulated Extension Wire
• Male & Female wire connectors
• Silicon Rubber Protection Boot (x2)
DIGITAL GAUGE & PROBE MADE IN THE USA
The Bio Diesel Exhaust Gas Temperature Sensor is specifically designed for use in Internal Combustion Engines operating on Diesel & Biodiesel or any system using a sulfuric or exhaust systems that are prone to fouling exposed junction EGT probes. This probe has been designed to withstand the rigors of marine and over the road trucking. It will also withstand the rigors of racing, tuning, and testing applications.
IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:
This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.
Options:
TECHNICAL SPECIFICATIONS
PMDW series Digital Pyrometer Gauge Technical Specifications:
Number of Inputs: | 1 |
Input: | Type K thermocouple (default) |
Other Input Types: | J, T, E, R, S, B, N Type thermocouple (user selectable) |
Display Range: | -328 to 2502°F (-200 to 1372°C); (default setting of K type thermocouple) |
Accuracy: | +/-2.3 °F/°C |
Display Resolution: | 1°F (1°C) |
LED Display: | 4-digit LED, 0.5 inch (12 mm high), 1 second update rate, Red or Green |
Microprocessor Sampling Rate: | 1.25 samples/second |
Environment: | -35 to +60C, 85% Max. RH (non-condensing) |
Operating Temperature: | -30 to 140°F (-35 to 60°C) |
Front Bezel Rating: | NEMA4X / IP65 |
Input Voltage: | 9 to 28 VDC |
Current Draw: | 125 mA @ 24 VDC |
Alarm Relay Contact Rating: | 1A @ 30VDC resistive, 0.3A @ 125VAC resistive |
Case Dimensions: | 1.5" x 2.9" x 1.7" (38mm x 74mm x 43mm) |
Panel Cutout Dimensions: | 2.68" x 1.30" (68 x 33 mm) |
Weight: | 2.5 ounces |
EGT-DP Series EGT Probe Specifications:
Thermocouple type: | Type K |
Temperature Range: | -148°F to 2372°F (-100°C to 1300°C) |
Accuracy: | +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error) |
Probe Diameter: | 3/16 inch (0.187 inch) (4.75 mm) |
Response Time: | 150 milliseconds |
Max Tip Insertion Depth: | 1.1 inch (27.94 mm) |
Outer Sheath Material: | Inconel 600 protective sheathing |
Cable: | Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot |
Included Compression Fitting: | 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread |
Included Weld Bung Fitting: | 316 stainless steel, |
2 Wire Audible Piezo Buzzer Alarm (included):
Voltage Range: | 3-20 VDC |
Current Consumption: | 10 mA @ 12 VDC |
Sound Pressure Level: | 75 dB min. @ 30 cm/12 VDC |
Resonant Frequency: | 2700 Hz +/- 500 Hz |
Operating Temperature: | -4F to +140F (-20C to +60C) |
Mounting Centers: | 1-9/64" (29 mm) |
Size: | 7/8" diameter x 5/16" tall (22 mm diameter x 8 mm tall) |
Weight: | 4 grams |
DOCUMENTS & DOWNLOADS
VIDEOS
About - PMDW Marine EGT Kit

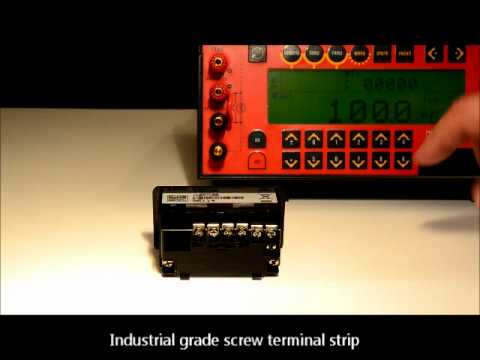

NEMA4X/IP65 Sealed Digital Pyrometer with Diesel Probe and Extended Cable
This kit is designed for inboard marine engine installations where the gauge is exposed to moisture, salt air, and washdown conditions.
It includes the PMDW sealed digital pyrometer gauge, a 3/16" EGT-DP diesel probe, stainless steel weld bung, audible alarm, sealed connector boots, and up to 100 feet of Type K thermocouple extension wire—providing a complete marine-ready EGT monitoring solution.
Why Marine Installations Require a Sealed Gauge
Marine environments expose instrumentation to:
- Salt spray
- Condensation
- Humidity cycling
- Washdowns
The PMDW gauge features a NEMA4X / IP65-rated front bezel, providing protection against water jets, dust, and corrosion.
This level of sealing is required for long-term reliability in marine applications.
PMDW Gauge Features
Wide Input Voltage
- 9–28 VDC
- Compatible with 12V and 24V marine systems
Large Display
- 12 mm (0.5") LED characters
- Improved visibility in outdoor or low-visibility conditions
Universal Thermocouple Input
Supports:
- Type K, J, T, E, R, S, B, N
Accuracy
- ±2.3°F / °C absolute
Alarm Relay
- 1A @ 30 VDC
- 0.3A @ 125 VAC
Provides output for:
- Audible alarms
- Warning lights
EGT Monitoring in Marine Diesel Engines
Marine diesel engines often operate under sustained load conditions.
EGT provides early detection of:
- Overloading
- Fuel system issues
- Cooling inefficiencies
Unlike coolant temperature, EGT responds quickly to combustion changes.
EGT-DP Probe: Marine Diesel Design
The EGT-DP probe features:
- Type K thermocouple
- 3/16" (0.187") Inconel sheath
- Enclosed, ungrounded junction
This design protects the sensing junction from moisture, sulfur compounds, and corrosive exhaust environments.
Response Time
- 1200 ms (time constant)
Defined as the time required to reach 63.2% of a step temperature change.
This response time is appropriate for marine engines, where temperature changes occur gradually.
Probe Specifications
- Range: -148 to 2372°F
- Accuracy: ±0.4% of reading
- Cable: Stainless overbraid, Teflon-insulated, 20 AWG
- Fitting: 316 stainless steel compression fitting
Wiring
Maintain correct thermocouple polarity:
- Yellow = Positive (+)
- Red = Negative (–)
Extension Cable System
- Type K thermocouple extension wire
- Up to 100 ft lengths available
Maintains alloy continuity to prevent measurement errors.
Marine Connector Protection
Silicone boots seal connector junctions against moisture and corrosion, preventing signal degradation over time.
Installation Overview
Probe Location
- Pre-turbo preferred
- Post-turbo acceptable for trend monitoring
Mounting
- Stainless steel weld bung included
- Drill-and-tap only if sufficient wall thickness exists
Cable Routing
- Keep away from exhaust heat
- Avoid AC wiring interference
- Seal bulkhead penetrations
Applications
- Inboard diesel engines
- Sportfishing vessels
- Trawlers and cruisers
- Marine engine monitoring systems
Summary
The PMDW Marine EGT Kit provides a complete solution for marine exhaust temperature monitoring.
- Sealed gauge for harsh environments
- Durable enclosed probe
- Long-distance cable capability
- Integrated alarm system
