Mini Digital Pyrometer Gauge "SuperLite" with Peak Hold

SuperLite Mini Digital LED Pyrometer Gauge Display for EGT or CHT Temperatures
SuperLite Mini Digital LED Pyrometer Thermocouple Gauge Display Red Blue GreenSmall & Lightweight Mini Digital LED Pyrometer Thermocouple Gauge DisplaySuperLite Mini Digital LED Pyrometer Thermocouple Gauge Display Back
Sale Price:
$58.50
SKU: PMD1XT-XX-0XX-0
Availability: Stock
Quantity:

Options

Product Info:

  • Summary
  • Technical
  • Video

Overview

• Small Size ~ 1" high x 2" wide x 3" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm LED with internal relay contact


Features

• Compatible with any of our EGT probes or CHT sensors
• Accepts one probe
• °F/°C selectable
• Screw terminal connection
• Visible HIGH alarm LED + Relay output
• Display Max Peak Hold Button


Temperature Probe not included, please purchase separately


Plug and Play Compatible with the Following TSC Products:

• EGT Probes - All
• CHT Sensors - All
• Stick-On Probes - All
• Thermocouples - All


Technical Specifications

Number of Inputs: 1
Input:: K type thermocouple (default)
Other Input Types: J & T thermocouple, RTD, Voltage, mA (user selectable)
Display Range: -325 to 2372°F (-200 to 1300°C); (default setting of K type thermocouple)
Accuracy: +/-0.2% of reading (+/- 1°C)
Display Resolution: 1°F (1°C)
LED Display: Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate
Microprocessor Sampling Rate: 4 samples/second
Microprocessor A/D Resolution: 16 bit
A/D Accuracy: +/- 0.2% FS +/- 1 unit
Environment: 0 to 50C, 85% Max. RH (non-condensing)
Operating Temperature: +32 to +125°F (0 to +50°C)
Front Bezel Rating: IP51
Input Voltage: 10 to 16 VDC (24 VDC powered available upon request)
Current Draw: < 100 mA @ 24 VDC
Alarm Relay Contact Rating: 1A @ 30VDC
Case Dimensions: 1" x 2" x 3" (24mm x 48mm x 75mm)
Panel Cutout Dimensions: 1.77" x 0.87" (45 x 22 mm)(1/32 DIN)
Weight: 2.1 ounces

Shipping Notes

Ships from stock
We Ship World Wide! North America, South America, Europe, Asia, Australia - Just about wherever you are, we'll ship to you.


Questions about what you need? Call us 248-636-1515 for technical support.


PMD1XT 12VDC Series Pyrometer Gauge User Manual
PMD1XT 24VDC Series Pyrometer Gauge User Manual
PMD1XT Series Pyrometer Gauge Quick Start Guide

Brand Name: The Sensor Connection
Made in: USA

Overview of PMD Series Digital Pyrometer Gauge
Overview of PMD Series Pyrometer
How to Change the Temperature Units on the PMD Series Digital Pyrometer
PMD Series Change Temperature Units

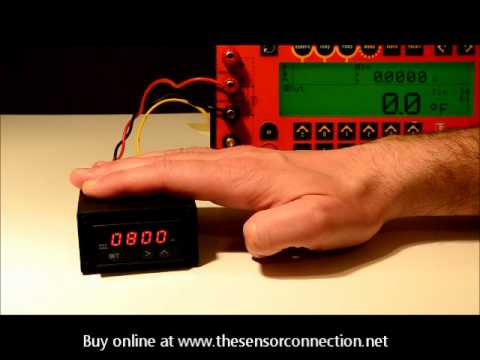

How to Change the Alarm Setpoint on the PMD Series Digital Pyrometer
PMD Series Change Alarm Setpoints

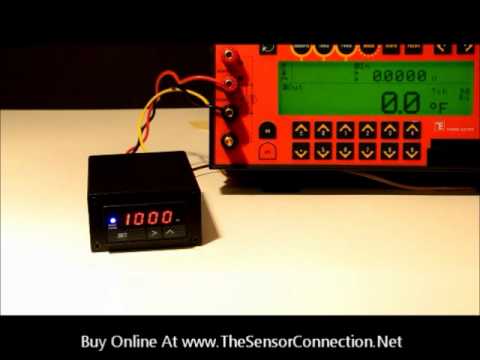

How to Set the Peak Hold on the PMD Series Digital Pyrometer
PMD Series Peak Hold Function
How to Fine Tune the Zero Point on the PMD Series Digital Pyrometer
PMD Series Fine Tuning Zero
