New Product Announcement - ILPS-18S Series Spring Loaded LVIT Linear Position Sensor - Economical High Performance Gauging Probe

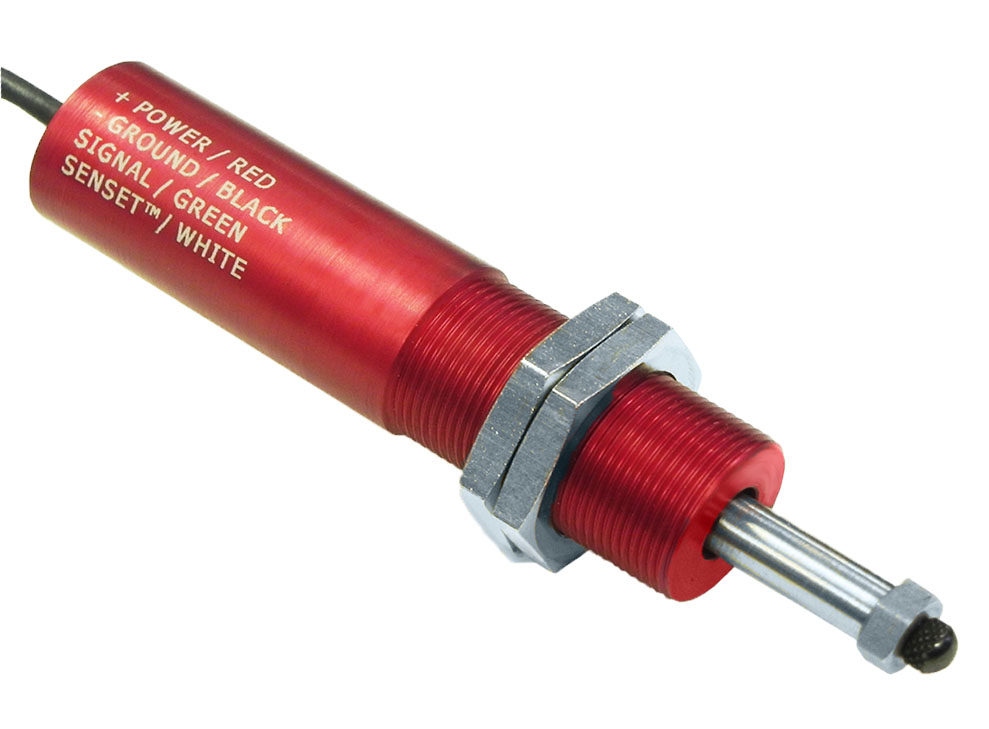

ILPS-18S Series Spring Loaded LVIT Linear Position Sensor

Bloomfield Hills, Michigan, April 5, 2018… Harold G. Schaevitz Industries LLC (HGSI) has expanded its sensor product offering by adding a line of ILPS-18S Series Spring Loaded Inductive Linear Position Sensors using LVIT Technology. The ILPS-18S was designed as an economical solution for dimensional gauging and position measurements in commercial, industrial, and military applications. With their compact design, long service life, and excellent stroke-to-length ratio, ILPS-18S sensors are ideal for test stands, test laboratories, automated assembly machines, processing & packaging equipment, robotics, and automotive test applications.

ILPS-18S Features:

  • Measuring ranges from 13 to 100 mm (0.5 to 4 inches)
  • Excellent stroke-to-length ratio
  • Lower cost replacement for spring loaded LVITs
  • Long service life, rated to over 100 million cycles
  • 19 mm (0.75 inch) diameter threaded aluminum housing sealed to IP-67
  • Axial termination with either M12 connector or integral cable

The ILPS-18S series offer a choice of four analog outputs and all include HGSI's proprietary SenSet™ field recalibration feature.

About Harold G. Schaevitz Industries LLC

Harold G. Schaevitz Industries LLC is an American company whose management has a combined experience of over 50 years in the sensor industry. We have a technically trained staff to help you select the ideal sensors for your application. Our core product offering includes Exhaust Gas Thermocouples (EGT) Probes, Thermocouples, RTDs, Linear Position sensors, Rotary Position sensors, Pressure sensors and switches. In addition to our standard products, we have capabilities to design and build custom products to suit your specific application. Major markets served include Motorsports, Marine, Heavy Vehicle, R&D Test labs, Power Generation, Military, and Industrial Manufacturing Assembly & Test.

Product Link:

https://www.hgsind.com/product/ilps-18s-linear-lvit-position-sensor-spring-loaded
