Shock Absorber Suspension Travel Sensor - Potentiometer

OVERVIEW

• Ruggedized Linear Potentiometer
• Measure the linear motion or position of suspension
• Stroke lengths available from 25 to 300 mm (1 to 12 inches)
• Rod End Joints for simple mounting
• Anodized corrosion resistant housing
• Environmental rating of IP64 (Dust tight, Water resistant)
• Compact Size, only 0.90" (22 mm) diameter


MADE IN THE USA

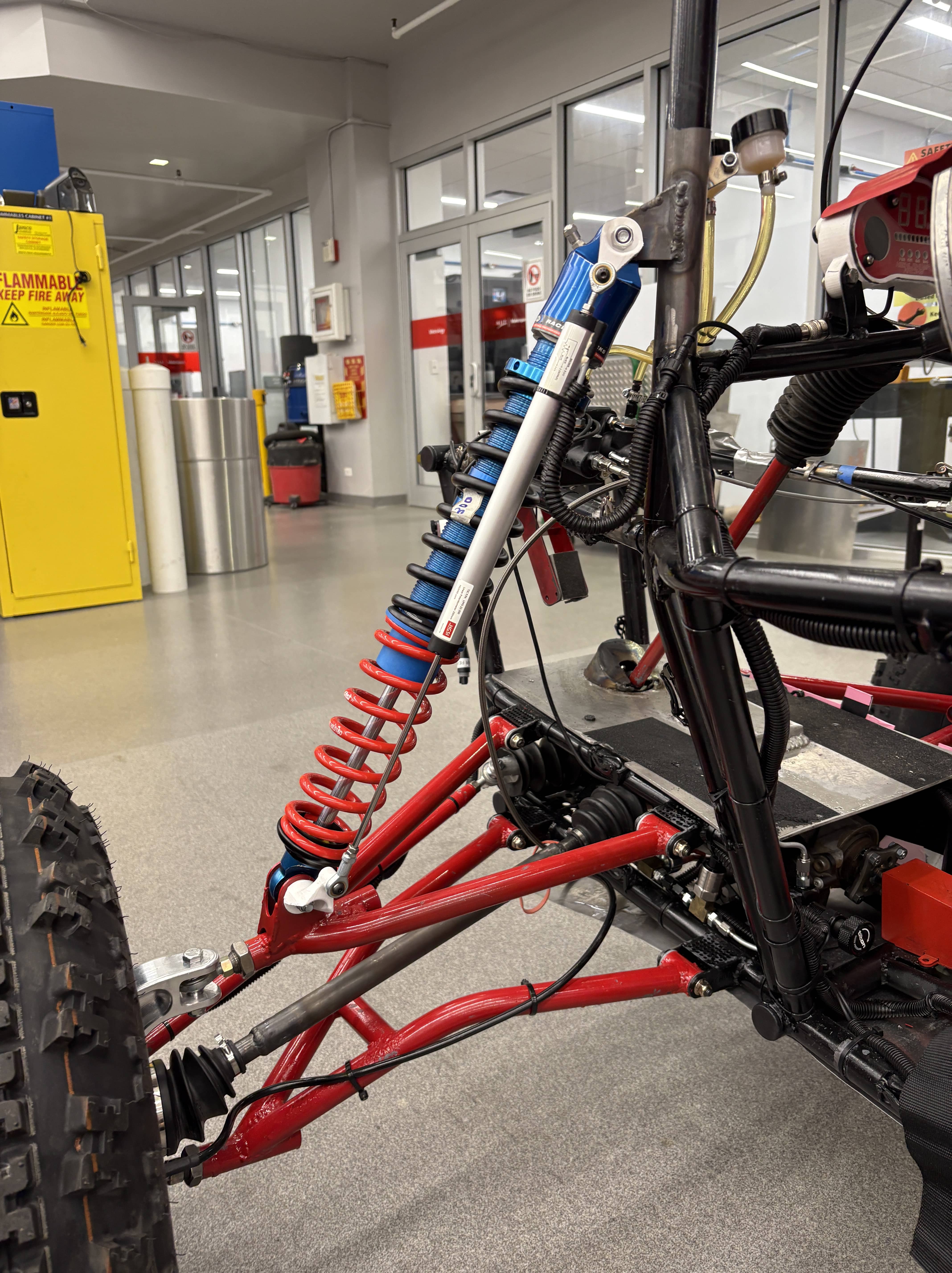

The Sensor Connection LPPS-22 series Shock Absorber Suspension Travel Sensor with Rod End Joints are used to monitor the deflection of the vehicle suspension by mounting next to the shock absorber to provide feedback of shock and tire performance.

Additional automotive motorsports applications for the LPPS-22 travel sensor include measuring linear displacement or position changes in automotive components such as accelerator pedals, throttle position, and transmission linkages.

The resistive potentiometric element is made from carbon. Output is ratiometric; from 0% to 100% of excitation voltage.

The LPPS-22 series sensor is made from industrial duty materials for resistance to dust, water, temperature, shock, and vibration.

Rod End Joint hole is 5 mm in diameter

We Ship World Wide! Europe, Asia, Australia, South America - Wherever you are, we'll ship to you.

Our Linear Shock Travel Sensors, Accessories and Electronics are in-stock and ready for fast delivery. Need help making a selection? Use our Linear Travel Sensor Comparison Chart. For additional pricing and technical questions, contact us now to speak to an experienced application engineer.

Options:

LPPS Measuring Range
SKU
LPPS-22-025
Availability
In Stock
0
Out of Stock
0
Discontinued
Off
Price
$125.00
Add to Cart

TECHNICAL SPECIFICATIONS

Stroke Lengths:

1" (25mm), 2" (50mm) 3" (75mm), 4" (100mm), 6" (150mm) 8" (200mm), 10" (250mm)

Mechanical Stroke Length:

Stroke Length + 0.12" (3 mm)

Non-Linearity:

</= +/- 0.25% of full stroke

Resolution:

Infinite

Repeatability:

0.0004" (0.01 mm)

Maximum Operating Velocity:

5 m per second

Element Type:

Carbon

Output:

0 to 100% of excitation voltage

Element Resistance:

1.0" range unit = 2.0K ohm (+/- 20%), 2.0" to 12.0" range units = 5.0K ohm (+/- 20%)

Maximum Excitation Voltage:

4.0" range unit = 24 VDC, 8.0" and 12.0" range unit = 36 VDC

Current Draw:

 ~10 mA (nominal)

Output Cable:

3 conductor with drain, 22 AWG, PVC jacket, 3 foot long

Operating Temperature Range:

-40 to +195°F (-40 to +95°C)

Thermal Coefficient of Sensitivity:

<0.03%/°C nominal

Humidity:

95% Max. RH (non-condensing)

Liquid & Dust Protection:

IP64

Shock Rating:

50g (single hit), IEC68-2-29:1968

Vibration Rating:

20g, IEC68-2-6:1982

Housing Dimension (O.D):

0.9 inch (22 mm)

Weight:

X oz (X g)
