OVERVIEW
Kit Includes:
• Fast Response Gas Racing EGT Probe
• Digital Pyrometer Gauge
• Adjustable Muffler Clamp Fitting
(Recommended for fuel types: Gasoline, Natural gas, Nitrous Oxide, & Alcohols)
EGT Probe
• Probe diameter 3/16 inch (0.187 inch) (4.75 mm)
• Exposed Tip Sensing Junction (Fast Response)
• Response time constant: 250 milliseconds
• Includes adjustable Muffler Clamp fitting
• Cable is 6 feet long (2 meters) or 12 feel long (4 meters)
• Made in the USA

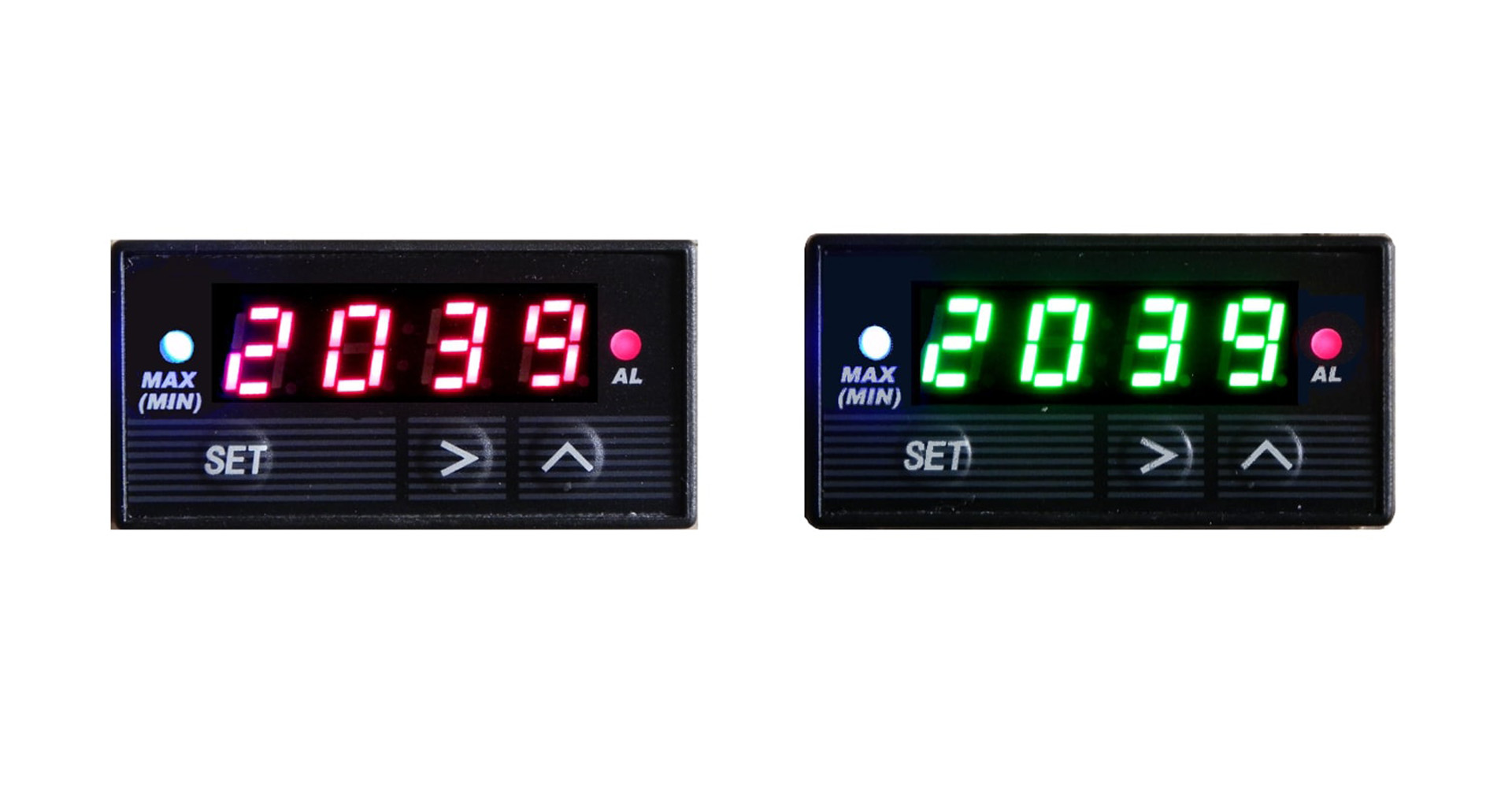

Digital Pyrometer
• Small Size ~ 1" high x 2" wide x 3" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• °F/°C selectable
DIGITAL GAUGE & PROBE MADE IN THE USA
The Exhaust Gas Temperature Sensor (EGT Probe) is specifically designed for use in racing, tuning, and testing applications. Our probes are made in the USA from superior materials, designed to withstand rugged racing conditions. The Exposed Tip sensing junction provides immediate response to dynamic temperature changes.
IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:
This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.
Options:
TECHNICAL SPECIFICATIONS
PMD1XT series Digital Pyrometer Gauge Technical Specifications:
|
Number of Inputs: |
1 |
|
Input: |
Type K Thermocouple (default) |
|
Other Input Types: |
J & T thermocouple, RTD, Voltage, mA (user selectable) |
|
Accuracy: |
+/-0.2% of reading (+/- 1°C) |
|
Display Resolution: |
1°F (1°C) |
|
LED Display: |
Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate |
|
Microprocessor Sampling Rate: |
4 samples/second |
|
Microprocessor A/D Resolution: |
16 bit |
|
A/D Accuracy: |
+/- 0.2% FS +/- 1 unit |
|
Environment: |
0 to 50C, 85% Max. RH (non-condensing) |
|
Operating Temperature: |
+32 to +125°F (0 to +50°C) |
|
Front Bezel Rating: |
IP51 |
|
Input Voltage: |
10 to 16 VDC (24 VDC powered available upon request) |
|
Current Draw: |
< 100 mA @ 24 VDC |
|
Alarm Relay Contact Rating: |
1A @ 30VDC |
|
Case Dimensions: |
1" x 2" x 3" (24mm x 48mm x 75mm) |
|
Panel Cutout Dimensions: |
1.77" x 0.87" (45 x 22 mm)(1/32 DIN) |
|
Weight: |
2.1 ounces |
EGT-MP series EGT Probe Specifications:
|
Thermocouple type: |
Type K |
|
Temperature Range: |
-148°F to 2372°F (-100°C to 1300°C) |
|
Accuracy: |
+/-0.4% of reading or about +/- 1.1°C (Special Limits of Error) |
|
Probe Diameter: |
3/16 inch (0.187 inch) (4.75 mm) |
|
Max Insertion Depth: |
1.5 inch |
|
Response Time: |
250 milliseconds |
|
Outer Sheath Material: |
Inconel 600 protective sheathing |
|
Sheath Wall Thickness: |
0.023" (.58 mm), MgO insulated |
|
Cable: |
Stainless steel over-braid cable with FEP insulated conductors; 6 or 12 foot |
|
Muffler Clamp I.D. sizes to choose from: |
• Extra Small: Adjustable from 0.75 ~ 1.5 inch (19 ~ 38 mm) |
