EGT Digital PMD1XT Series Pyrometer Gauge Kit - Diesel Pusher Motorhome

OVERVIEW

For Diesel Motorhome Applications! (Not just Pushers)

Kit Includes:
• Foul Proof Diesel EGT Probe
• Digital Pyrometer Gauge with Aluminum Enclosure
• Audible High Temperature Alarm
• Adjustable Compression Fitting
• Mild steel weld bung
• 10, 20, or 50 feet of Extension Cable + Connectors

KIT CONTENTS:

EGT Probe:
• Probe diameter 3/16 inch (0.187 inch) (4.75 mm)
• Enclosed Tip Sensing Junction (Foul Proof)
• Response time constant: 1200 milliseconds
• Includes 316 SS adjustable compression fitting
• Cable is 6 feet long (2 meters)
• Made in the USA

Digital Pyrometer:
• Small Size ~ 1" high x 2" wide x 3" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• °F/°C selectable

Also Includes:
• Aluminum Enclosure
• Audible Buzzer Alarm
• Mild Steel Weld Bung Adapter
• 10, 20, or 50 feet of FEP insulated Extension Wire
• Male & Female wire connectors


DIGITAL GAUGE & PROBE MADE IN THE USA


The Bio Diesel Exhaust Gas Temperature Sensor is specifically designed for use in Internal Combustion Engines operating on Diesel & Biodiesel or any system using a sulfuric or exhaust systems that are prone to fouling exposed junction EGT probes. This probe has been designed to withstand the rigors of marine and over the road trucking. It will also withstand the rigors of racing, tuning, and testing applications.

Our Exhaust Gas Temperature Sensors, Accessories and Electronics are in-stock and ready for fast delivery. Need help making a selection? Use our EGT Probe Comparison Chart. For additional pricing and technical questions, contact us now to speak to an experienced application engineer.



IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:

This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.

Options:

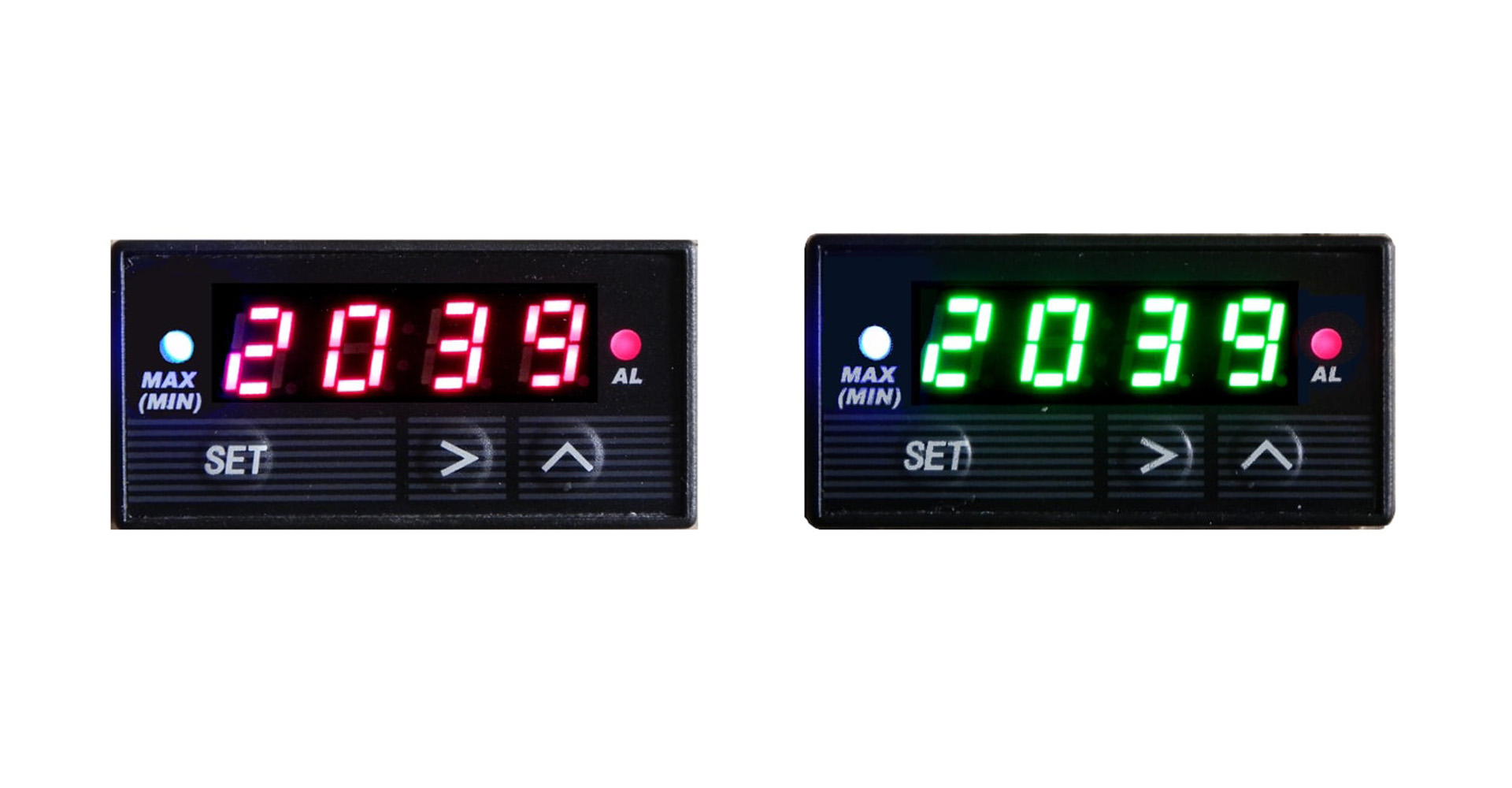

Choose LED Display Color and Input Power
Thermocouple Cable Length
SKU
MOTORHOME KIT-PMD1XT-012-RD+EGT-DP-072+TXW-10FT
Availability
In Stock
0
Out of Stock
0
Price
$158.25
Add to Cart

TECHNICAL SPECIFICATIONS

PMD1XT series Digital Pyrometer Gauge Technical Specifications:

Number of Inputs:

1

Input:

Type K Thermocouple (default)

Other Input Types:

J & T thermocouple, RTD, Voltage, mA (user selectable)

Accuracy:

+/-0.2% of reading (+/- 1°C)

Display Resolution:

1°F (1°C)

LED Display:

Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate

Microprocessor Sampling Rate:

4 samples/second

Microprocessor A/D Resolution:

16 bit

A/D Accuracy:

+/- 0.2% FS +/- 1 unit

Environment:

0 to 50C, 85% Max. RH (non-condensing)

Operating Temperature:

+32 to +125°F (0 to +50°C)

Front Bezel Rating:

IP51

Input Voltage:

10 to 16 VDC (24 VDC powered available upon request)

Current Draw:

< 100 mA @ 24 VDC

Alarm Relay Contact Rating:

 1A @ 30VDC

Case Dimensions:

1" x 2" x 3" (24mm x 48mm x 75mm)

Panel Cutout Dimensions:

1.77" x 0.87" (45 x 22 mm)(1/32 DIN)

Weight:

2.1 ounces


EGT-DP Series EGT Probe Specifications:

Thermocouple type:

Type K

Sensing Junction:

Enclosed Ungrounded

Temperature Range:

-148°F to 2372°F (-100°C to 1300°C)

Accuracy:

+/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)

Probe Diameter:

3/16 inch (0.187 inch) (4.75 mm)

Response Time:

150 milliseconds

Max Tip Insertion Depth:

1.1 inch (27.94 mm)

Outer Sheath Material:

Inconel 600 protective sheathing

Cable:

Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot

Included Compression Fitting:

316 stainless steel, adjustable, 1/8 inch –27 NPT male thread

Included Weld Bung Fitting:

316 stainless steel,
Dimensions: 0.55" OD x 0.35" tall (24mm OD x 9 mm tall),
1/8 NPT female thread



2 Wire Audible Piezo Buzzer Alarm (included):

Voltage Range:

3-20 VDC

Current Consumption:

10 mA @ 12 VDC

Sound Pressure Level:

75 dB min. @ 30 cm/12 VDC

Resonant Frequency:

2700 Hz +/- 500 Hz

Operating Temperature:

-4F to +140F (-20C to +60C)

Mounting Centers:

1-9/64" (29 mm)

Size:

7/8" diameter x 5/16" tall (22 mm diameter x 8 mm tall)

Weight:

4 grams



Protective Enclosure for Digital Pyrometer (included):

Brand Name:

The Sensor Connection

Housing:

Aluminum with Matte Black finish

Enclosure dimensions:

1.5" tall x 2.5" wide x 3.5" deep (38 x 63 x 89 mm)

Enclosure weight:

4 oz
