OVERVIEW
For Snowmobile Applications!
Kit Includes:
• Fast Response EGT Probe (x2)
• Face of Digital Pyrometer Gauge is weather resistant
• Digital Pyrometer Gauge rated to -40°F (-40°C)
• Adjustable Compression Fitting (x2)
(Recommended for all fuel types)
KIT CONTENTS:
EGT Probe (x2)
• Probe diameter 1/8 inch (0.125 inch) (3.2 mm)
• Enclosed Tip Sensing Junction (Foul Proof)
• Response time constant: 550 milliseconds
• Includes 316 SS adjustable compression fitting
• Cable is 6 feet long (2 meters)
• Made in the USA

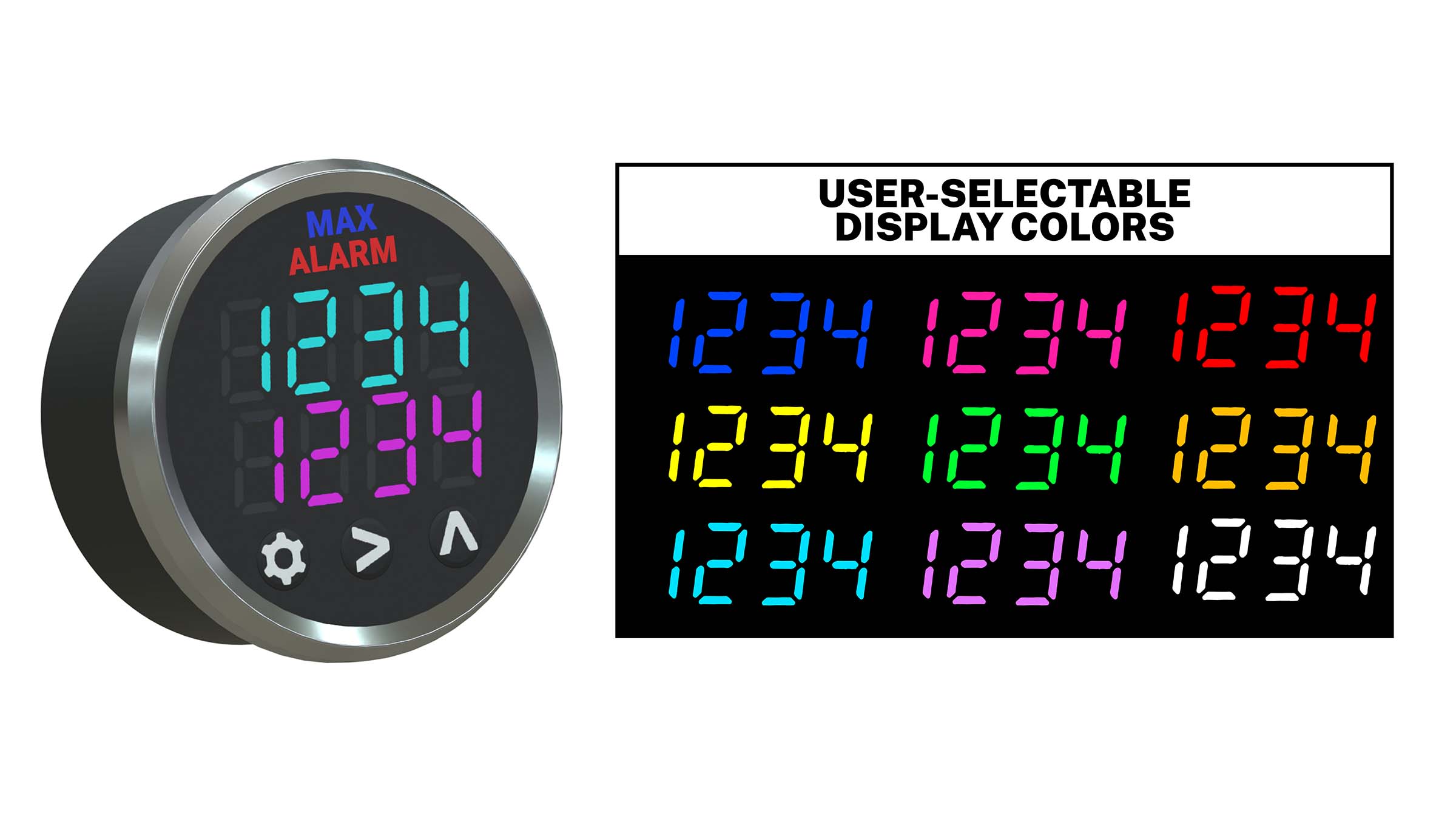

Digital Pyrometer
• Small Size ~ 2-1/16" (52 mm) Round
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• °F/°C selectable
• Front Bezel Rating: NEMA4X/IP65
• Power: 9 to 28 VDC
• Made in the USA
DIGITAL GAUGE & PROBE MADE IN THE USA
The Exhaust Gas Temperature Sensor is specifically designed for use in 2-Stroke Engine applications, including snowmobiles. Made in the USA from superior materials. The Enclosed Tip sensing junction provides reliable measurement of temperature changes.
IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:
This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.
Options:
TECHNICAL SPECIFICATIONS
2-Channel Dual DPG-SD series Digital Pyrometer Gauge Technical Specifications:
|
Input: |
Type K Thermocouple (2 channel) |
|
Input Resistance: |
60k Ω |
|
Display Range: |
+32 to +2282°F (0 to +1250°C) |
|
Accuracy: |
<+/- 0.5% of Full Scale |
|
Display Resolution: |
1°F (1°C) |
|
LED Display: |
Red, 4-digit, 0.4 inch (10 mm high), 0.5 second update rate |
|
Microprocessor Sampling Rate: |
10 samples/second |
|
Peak Capture Rate: |
3 samples/second |
|
Environmental Operating Humidity Range: |
0 to 95% Max. RH (non-condensing) |
|
Environmental Operating Temperature Range: |
-40 to +185°F (-40 to +85°C) |
|
Front Bezel Rating: |
IP65 |
|
Supply Voltage: |
+9 to +28 VDC |
|
Current Draw: |
50 mA (nominal) |
|
Alarm Relay Contact Rating: |
2 Amp |
|
Case Dimensions: |
OD: 2.00 (51 mm) |
|
Panel Cutout Dimensions: |
2.05 (52 mm) Round Hole |
|
Weight: |
1.8 ounces (50 grams) |
EGT-2S Series EGT Probe Specifications:
|
Thermocouple type: |
Type K |
|
Temperature Range: |
-148°F to 2372°F range (-100°C to 1300°C) |
|
Accuracy: |
+/-0.4% of reading or about +/- 1.1°C (Special Limits of Error) |
|
Probe Diameter: |
1/8 inch (0.125 inch) (3.175 mm) |
|
Max Tip Insertion Depth: |
0.85 inch |
|
Response Time: |
550 mS |
|
Outer Sheath Material: |
Inconel, melting point 2550°F (1400°C) |
|
Sheath Wall Thickness: |
0.015" (.38 mm), MgO insulated |
|
Cable: |
Stainless steel over-braid cable with FEP insulated conductors; 6 foot |
|
Included Compression Fitting: |
316 stainless steel, adjustable, 1/8 inch –27 NPT male thread |
