OVERVIEW
• Small Size ~ 1" high x 2" wide x 3" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm LED with internal relay contact
• Analog 0 to 5 VDC retransmission output (to Data Logger)
• Accepts one probe
• °F/°C selectable
• Screw terminal connection
• Visible HIGH alarm LED + Relay output
• Display Max temperature Peak Hold Button
• Analog retransmission output (to Data Logger)
Plug and Play Compatible with the Following TSC Products:
• EGT Probes - All
• CHT Sensors - All
• Stick-On Probes - All
• Thermocouples - All
Temperature Probe not included, please purchase separately

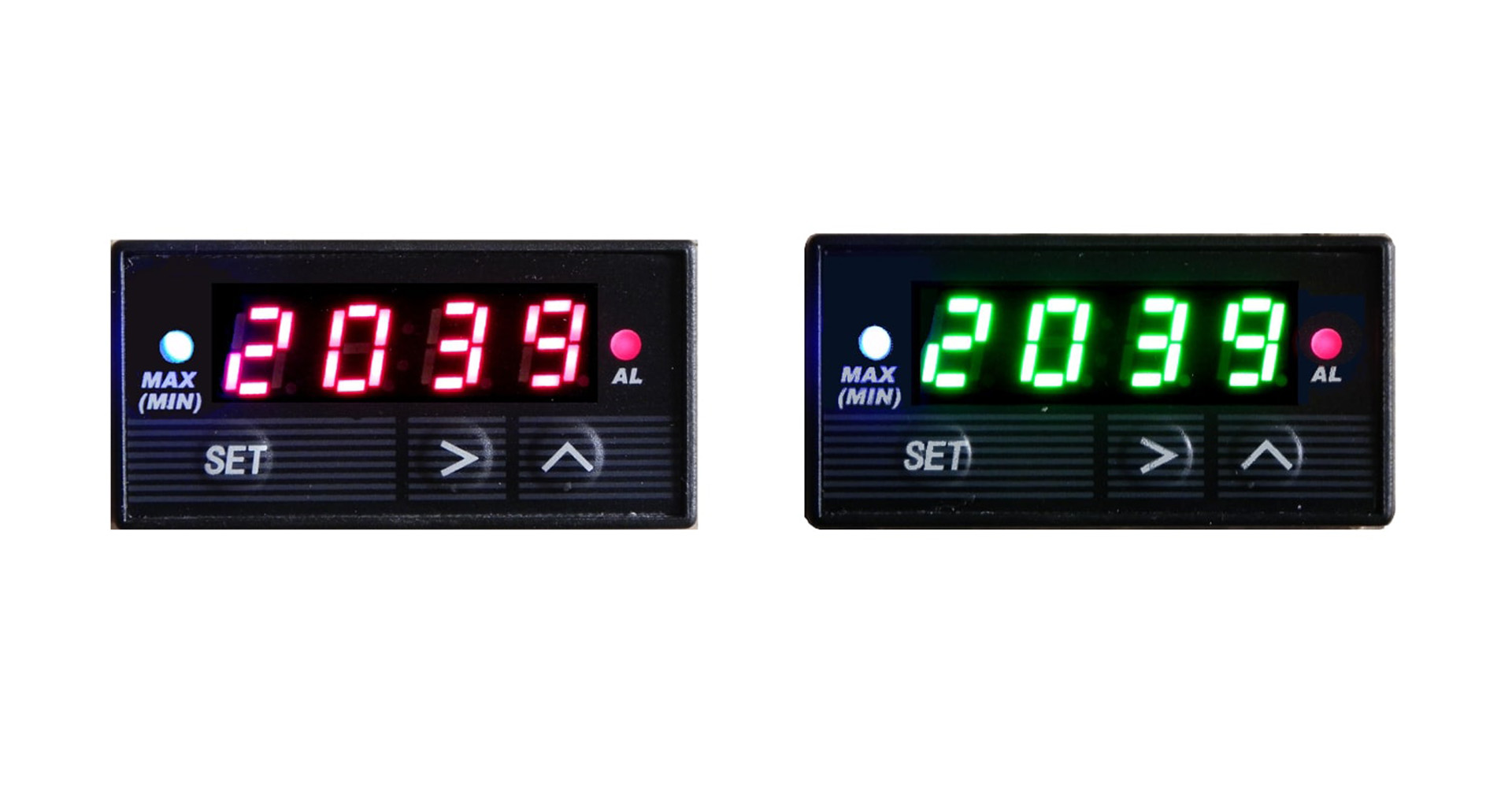

The PMD-1XT Series gauge has advanced operations including max temperature recall, high temperature alarm, and analog retransmitting output. The gauge’s high resolution digital microprocessor ensures accurate temperature measurement. The PMD-1XT Series gauge features a bright four digit LCD display with selectable decimal point position that is easy to read, even in direct sunlight and an industrial grade screw terminal strip allows for quick and easy connection of power and signal wires. Setup and programming of your PMD-1XT gauge is simple using the three front panel push buttons. The gauge includes a fast response feedback alarm that gives a visual warning alert, plus an internal relay is triggered that can be used to control an external device, such as a fan or buzzer. You can easily access the max temperature recall feature to display the peak temperature stored in memory. All of our gauges are manufactured from high quality materials for optimum performance in your demanding application.
IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:
This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.
Options:
TECHNICAL SPECIFICATIONS
Number of Inputs: | 1 |
Input: | Type K Thermocouple (default) |
Other Input Types: | J & T thermocouple, RTD, Voltage, mA (user selectable) |
Accuracy: | +/-0.2% of reading (+/- 1°C) |
Display Resolution: | 1°F (1°C) |
LED Display: | Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate |
Microprocessor Sampling Rate: | 4 samples/second |
Microprocessor A/D Resolution: | 16 bit |
A/D Accuracy: | +/- 0.2% FS +/- 1 unit |
Environment: | 0 to 50C, 85% Max. RH (non-condensing) |
Operating Temperature: | +32 to +125°F (0 to +50°C) |
Front Bezel Rating: | IP51 |
Input Voltage: | 10 to 16 VDC (24 VDC powered available upon request) |
Current Draw: | < 100 mA @ 24 VDC |
Alarm Relay Contact Rating: | 1A @ 30VDC |
Case Dimensions: | 1" x 2" x 3" (24mm x 48mm x 75mm) |
Panel Cutout Dimensions: | 1.77" x 0.87" (45 x 22 mm)(1/32 DIN) |
Weight: | 2.1 ounces |
DOCUMENTS & DOWNLOADS
VIDEOS
RELATED PRODUCTS
About - Mini Digital Pyrometer Gauge "Superlite-A" with 0–5 VDC Analog Output
Why Add a 0–5 VDC Retransmission Output to a Pyrometer Gauge
The PMD2XT-A adds a 0 to 5 VDC analog retransmission output to the standard PMD1XT platform. This output is derived from the gauge’s retransmission signal using the included resistor, allowing the unit to drive both a display and a voltage signal simultaneously.
Without an analog output, the gauge functions purely as a display device — information reaches the driver but cannot be shared with other systems. With the 0–5 V output, the gauge simultaneously drives the LED display and retransmits a proportional voltage to any downstream device that accepts voltage input: a data logger, an ECU analog input, a standalone alarm module, or a second display at a different location in the vehicle.
The retransmission output mirrors the live temperature reading, not the peak hold value, meaning the data logger captures real-time EGT rather than a static peak. For applications where post-session analysis of temperature versus throttle position, gear position, or other logged channels is required, this live output is essential. The PMD1XT without analog output cannot serve as a source node in a data acquisition chain — the PMD2XT-A can.
How the 0–5 V Output Maps to Temperature
The 0 to 5 VDC output is scaled across the display range configured in the gauge. For example, with a Type K thermocouple configured for a 0°F to 2300°F range, 0 V corresponds to 0°F and 5 V corresponds to 2300°F — a span of 460°F per volt.
The measurement resolution is based on the internal 16-bit A/D converter, while the analog output provides sufficient resolution for typical temperature logging applications. The data logger must be configured with the same scaling formula to convert the incoming voltage back into a meaningful temperature value during post-processing.
Integration with Data Loggers and ECUs
Most racing data loggers and ECUs accept 0–5 VDC analog inputs as a standard signal type. The PMD2XT-A analog output can be connected directly to these inputs without additional signal conditioning, making integration straightforward.
For EFI ECUs that can act on EGT data — such as triggering a protection strategy when exhaust temperature exceeds a threshold — the 0–5 V output provides a usable input signal that can be scaled and processed directly.
This allows a single PMD2XT-A to serve multiple roles simultaneously: driver display, data logger input, and ECU monitoring or protection signal. Contact The Sensor Connection for assistance configuring scaling parameters for specific systems.
